รายละเอียดสินค้า:
|
| วัสดุ: | สแตนเลส | รูปร่าง: | ลด |
|---|---|---|---|
| สัมพันธ์: | เชื่อม | พิมพ์: | หน้าแปลน |
| มาตรฐาน: | DIN, ANSI, BS, ASTM | สี: | หรือตามความจำเป็น |

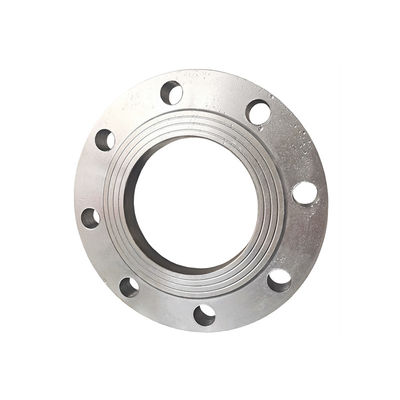

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure
Main functions of flange:
1, pipe failure, easy to disassemble detection;
2. Connect the pipeline and keep the pipeline with good sealing performance;
3. If a certain section of pipeline has problems, it is easy to replace a certain section of pipeline.
Flat welding flange in production and use has certain technical requirements and technical parameters, according to a certain way and method of production and processing:
1. The butt weld of the ring shall be subjected to post-welding heat treatment and 100% ray or ultrasonic inspection, and the ray inspection shall meet the grade II requirements of JB4730, and the ultrasonic inspection shall meet the grade I requirements of JB4730.Butt welding flange adopts certain welding standards and technology production and processing, in line with the corresponding production standards and requirements of ***.
2, the production of flat welding flange steel plate should be ultrasonic inspection, no delamination defects, to ensure good quality and performance problems, in accordance with certain quality requirements of production and inspection, to ensure that the production and use of steel plate no quality problems;
3, should be along the steel rolling direction cut into strips, bending welding into a circular ring, and make the surface of the steel ring cylindrical.The steel plate shall not be directly machined into a neck flange in the production of the joint flange, and a certain technology shall be used for production and processing.
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
| Materials | Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H Duplex Steel: ASTM A182 F51, F53, F55 Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Brand | TOBO |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages | 1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 3. 15 years' QC team service & sales management API& ASTM trained engineers. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)  |
โทร: 13524668060
