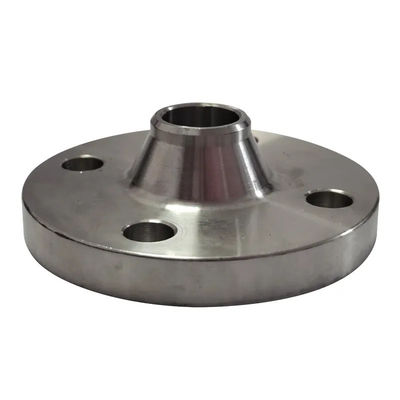

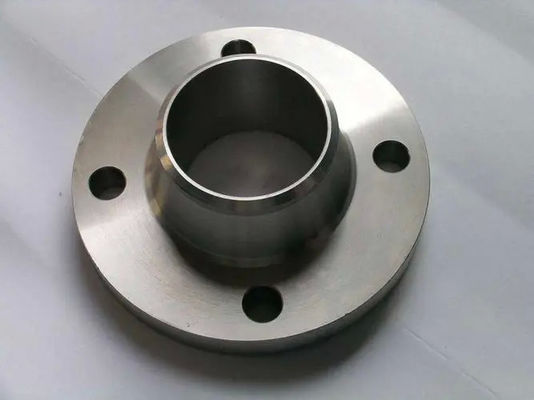

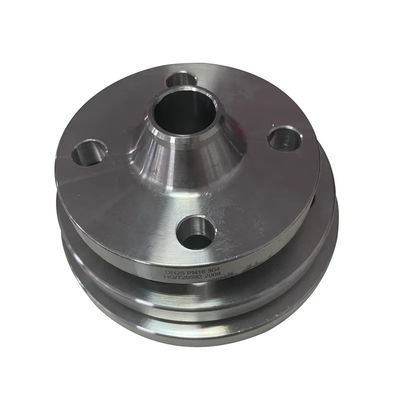

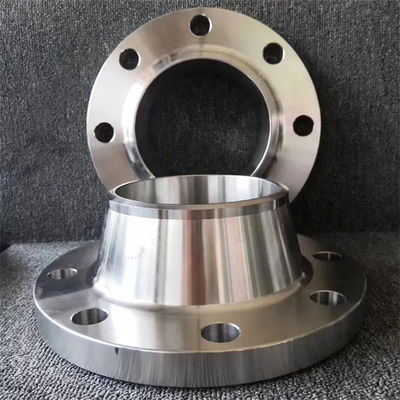

ASME B16.5 Alloy Weld Neck Flanges: Superior Integrity for High-Pressure
Available in the full range of ASME B16.5 pressure classes, from Class 150 to Class 2500. Standard sizes from 1/2" to 24" and larger. The hub end is beveled to match standard pipe wall thickness for a full-penetration butt weld. Material grades are selected for specific corrosion resistance and high-temAlloy Steel Weld Neck Flanges are the premier choice for critical, high-integrity piping systems. Their distinctive long tapered hub provides the highest strength and fatigue resistance of any flange type, making them indispensable for severe service conditions
Product Description:
This flange features a long, tapered neck that is butt-welded to the pipe, creating a smooth, continuous metal transition from flange to pipe. This design minimizes stress concentration. Manufactured from high-grade alloy steels (e.g., ASTM A182 F22, F91, Alloy 20), it is built for maximum durability and leak prevention.
Key Parameters:
perature strength.
Applications:
Essential for refinery and offshore platform main process lines, high-pressure steam headers, reactor feed lines, and any application involving hazardous, toxic, or flammable fluids. Used in systems subject to significant bending stresses, thermal expansion, and cyclic loading.
Advantages:
Provides the highest level of joint integrity and leak resistance. The tapered hub optimally distributes mechanical stress, reducing concentration at the wismantling and reassembly.
Functionality:eld joint. Excellent for repeated bending and thermal cycling. Allows for easy radiographic inspection of the weld for quality assurance. Ideal for systems requiring frequent d
Functions as the strongest possible welded connection, ensuring the safety and longevity of the piping system under the most demanding operating conditions. It facilitates non-destructive testing (NDT) of welds and is designed to handle high axial and
bending stresses without failure.
Payment & Invoicing
First-Time Clients: 50% advance payment, 50% balance before shipment.
Strategic Clients: 30% advance, 70% payment against copy of Bill of Lading.
Long-Term Agreements: 60-day credit terms available (subject to credit approval).
Invoicing: 13% VAT Special Invoice provided; FORM A Certificate of Origin for exports.
| Place of Origin | Shanghai, China |
| Warranty | 3 years |
| Customized support | OEM, ODM, OBM |
| Brand Name | TOBO |
| Surface treatment | Sand Blasting |
| Size | 1/2" up to 110" |
| Standard | ASME B16.9 |
| Package | Wooden cases |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
https://metalpipe.en.alibaba.com/
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the Alibaba certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
