รายละเอียดสินค้า:
|
| ชื่อสินค้า: | ตัวลดศูนย์กลาง | วัสดุ: | โลหะผสม 600 |
|---|---|---|---|
| มาตรฐาน: | ASME B16.9 | พิมพ์: | ไร้รอยต่อ |
| ความหนา: | sch40 | เส้นผ่านศูนย์กลางภายนอก: | 5" |
| แอปพลิเคชัน: | การเชื่อมต่อ | ขั้นต่ำ: | 1 ชิ้น |

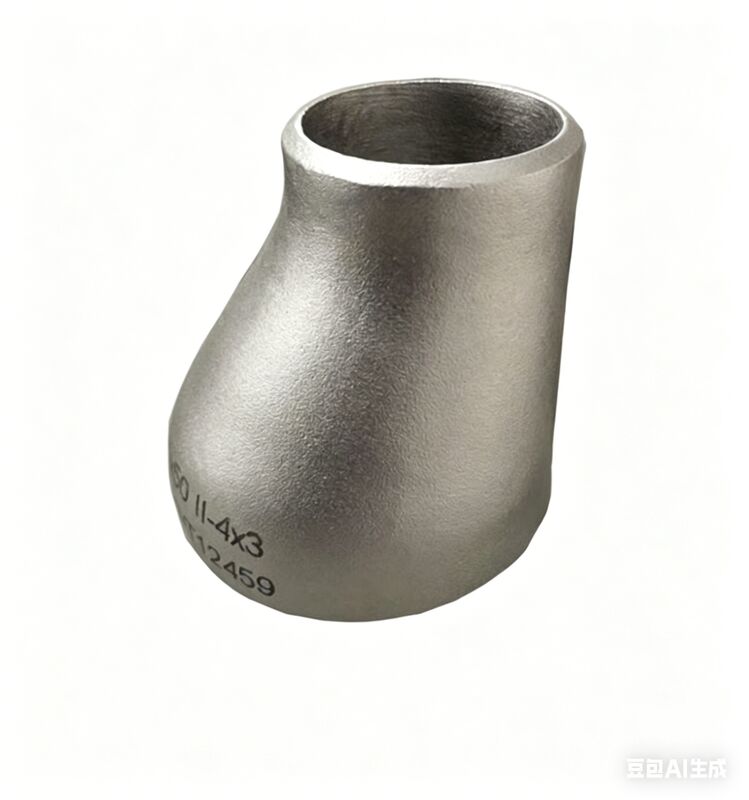

Monel 400 Thickness Alloy Pipe Fittings Eccentric Reducer 5" SCH40
A Concentric Reducer joins the tube sections on the same axis.
They connect unequal size pipes that have a common centerline and are used for TC transitions in vertical tubing.
| Product Name | Eccentric Reducer |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Nickel alloy steel | Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Application
Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical),
chemical and pharmaceutical, pulp and paper, fertilizer, desalination, nuclear, electric power, boiler,heat exchange,
metallurgy, refinery,machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile, ect.
Our advangtage
1) Raw material use 100% material steel
2) Good service
3) Competive price
4) Fast delivery
5)High quality products
We are one of the Professional manufacturers Exporter Pipeline products in China .
Our company was established in 1998, the plant covers 550, 000 square meters and
a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.
Chemical Composition
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | No | No+Ta | Fe |
|
0.07 max |
1.0 max |
2.0 max |
0.045 max |
0.035 max |
19.0-21.0 | 32.0-38.0 | 2.0-3.0 | 3.0-4.0 |
1.0 max |
8c-1.0 | balance |
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
